DesignJet T230 24"- 5HB07A
SKU: 5HB07A

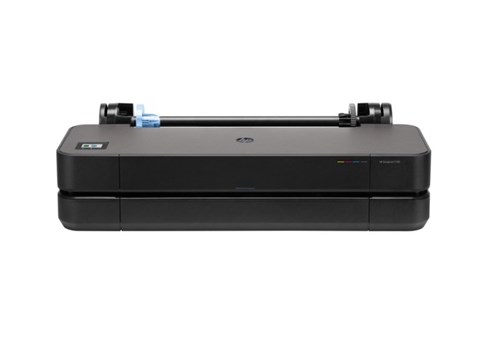

HP DesignJet T230 Large Format up to A1 Plotter Printer - 24" , with Mobile Printing (5HB07A)
- Available in 610 mm (24")
- Up to 35 sec/page on A1, 68 A1 prints per hour³
- 512 MB of internal memory
- Optional accessories: stand, roll cover, automatic sheet feeder (automatically switch from roll to sheet), spindle
- Ideal for home and small offices printing from letter size to large format up to 610 mm (24 inches) with print speeds that are faster than the T210 plotter.
- Product Support: One-year limited warranty. Warranty and support options vary by product, country and local legal requirements
Memory
512 MB
What's in the box
HP DesignJet T230 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
Connectivity, standard
Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
Print multi-size files in one click
Yes
Remote print enabled
Yes
Weight
21.5 kg
Package weight
28 kg
Minimum dimensions (W x D x H)
1013 x 440 x 285 mm
Package dimensions (W x D x H)
1155 x 575 x 405 mm
Power
Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Power consumption
<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)
Software included
HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant
Manufacturer Warranty
One-year limited hardware warranty
Number of print cartridges
4 (C, M, Y, K)
Ink types
Dye-based (C, M, Y)
pigment-based (K)
Color(s) of printing supplies
Cyan, magenta, yellow, black
Ink drop
5.5 pl (C, M, Y)
12 pl (K)
Print cartridge volume delivered
80 ml (K)
38 ml (K)
29 ml (C, M, Y)
Print head nozzles
1376
Print heads
1 (cyan, magenta, yellow, black)
High capacity of page yield (colour)
20 ml of ink yields 101 A1 pages, taking into account maintenance routines[2]
Functions
Internal Storage
None
Print technology
HP Thermal Inkjet
Print languages
JPEG, URF
Printer drivers included
Raster driver for Windows and macOS
Printing path
Print Anywhere with HP Smart app, HP Click, HP driver for macOS, HP driver for Windows, printing support for Chrome OS, email printing, HP Print Service Plugin for Android, Apple AirPrint
Line accuracy
±0.1%[3]
Theoretical minimum line width
0.02 mm
Model size
610 mm
Print speed
35 sec/page on A1, 68 A1 prints per hour[1]
Finished output handling
Sheet feed, roll feed, automatic horizontal cutter
Non-printable area (cut-sheet)
5 x 5 x 5 x 17 mm (manual feed)
5 x 5 x 5 x 5 mm (input tray)
Non-printable area (roll media)
5 x 5 x 5 x 5 mm
Print quality color (best)
Up to 2400 x 1200 optimised dpi
Maximum optical density (black)
8 L* min/2.10 D[4]
Media sizes standard (metric rolls)
279 to 610 mm
Roll external diameter
100 mm
Roll maximum input
1
Roll maximum weight
4.1 kg
Media thickness
Up to 11.8 mil
Supported Primary Applications
Line drawings
Presentations
Renderings
Recommended media
Q1396A HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m
C6019B HP Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m
C6029C HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 30.5 m
Media sizes supported
A4, A3, A2, A1
Media sizes, custom
210 x 279 to 610 x 1897 mm
Media types
Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
Media weight, recommended
60 to 280 g/m²
Media width, maximum
610 mm
Media thickness (metric)
Up to 0.3 mm
