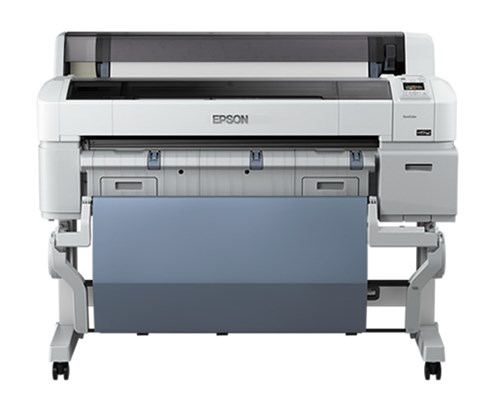

EPSON SURECOLOR SC-T5200 36inc PRINTER
SKU: C11CD67301A0
This high-speed, four-colour, large-format printer is designed to produce a wide range of high-quality graphics, CAD and GIS applications in design, commercial print, copy shop, architecture, building, engineering, retail and education environments.
SureColor SC-T5200
A highly productive 36-inch printer that combines performance, quality and value to save you time and money
The SureColor SC-T5200 maximises performance in busy graphics, CAD and GIS production environments. Powerful image processing and a fast print speed meet the market's need for maximum productivity and flexibility. Epson's PrecisionCore TFP printheads do not need replacing and, together with UltraChrome XD ink, deliver the highest level of performance, value and versatile media support.
The SureColor SC-T5200 maximises performance in busy graphics, CAD and GIS production environments. Powerful image processing and a fast print speed meet the market's need for maximum productivity and flexibility. Epson's PrecisionCore TFP printheads do not need replacing and, together with UltraChrome XD ink, deliver the highest level of performance, value and versatile media support.
Fast processing
High-speed printing of Graphics, CAD and GIS applications
Large-capacity ink cartridges
A choice of 110, 350 and 700 ml sizes mean a low TCO
PrecisionCore TFP printhead
Permanent printheads for duration of printer lifetime
UltraChrome XD inks
Produce quality, vibrant, smudge- and water-resistant images
PostScript support with 2x1.6GHz CPUs
Print multiple formats, including data-rich files, quickly and directly
| Technology | |
|---|---|
| Printing Method | PrecisionCore™ TFP print head |
| Ink Technology | Ultrachrome® XD |
| Colours | Photo Black [Pigment], Matte Black [Pigment], Cyan [Pigment], Yellow [Pigment], Magenta [Pigment] |
| Colours Capacity | Photo Black [110ml, 350ml, 700ml], Matte Black [110ml, 350ml, 700ml], Cyan [110ml, 350ml, 700ml], Yellow [110ml, 350ml, 700ml], Magenta [110ml, 350ml, 700ml] |
| Minimum Droplet Size | 3.5 pl, With Variable-Sized Droplet Technology |
| Minimum line width | 0.02 mm |
| Line accuracy | +/- 0.26 |
| Print from | PC, MAC |
| Nozzle Configuration | 720 Nozzles Black, 720 Nozzles per Color |
| Printing Resolution | 2,880 x 1,440 DPI |
| Paper / Media Handling | |
| Paper Formats | A1, A2 (42.0x59.4cm), A3+, A3 (29.7x42.0 cm), A4 (21.0x29.7 cm), B2 (51.4x72.8 cm), B3, B4, A0, 17", 24", 36" |
| Print Margins Sheet Media | Mode 1: 3 mm (top), 3 mm (right), 14 mm (bottom), 3 mm (left) |
| Compatible Paper Thickness | 0.08 mm - 1.5 mm |
| Duplex | No |
| Borderless printing on | 10 inches, 11.81 inches, 12.95 inches, 15.98 inches, 17.01 inches, 20.28 inches, 23.39 inches, 24.02 inches, 28.66 inches, 33.11 inches, 35.98 inches |
| General | |
| Power consumption | 60 Watt, 3 Watt (standby), 0.5 Watt (Power off) |
| Supply Voltage | AC 100 V - 240 V, 50 Hz - 60 Hz |
| Product dimensions | 1,405 x 813 x 1,128 mm (Width x Depth x Height) |
| Product weight | 84 kg |
| Sound Power | Operation: 6.8 B (A) |
| Noise Level | Operation (Roll): 50 dB (A) |
| What's in the box | Driver and utilities (CD), Individual Ink Cartridges, Maintenance box, Power cable, Setup guide, SureColor T-Series Printer, User manual (CD) |
| Optional extras | Wide Format Scanner, Hard Drive, Adobe Postscript 3 enablement unit (includes HDD), Attachment for Auto Take up reel unit, Document carrier sheet A0, Roll Adapter, Cover Plus warranty extensions, 36" Scanner stand, 44" Scanner stand |
| Other Features | |
| Memory | Printer: 1 GB |
| Compatible Operating Systems | Linux, Mac OS 10.5.8 or later, Windows 10, Windows 7, Windows 7 x64, Windows 8 (32/64 bit), Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64 |
| Emulations | HP-GL2, RTL, Adobe® Postscript 3® (optional), ESC/P-R |
| Features | Direct scan-to-print without PC |
| Scanner not included with delivery | Yes |
| Interfaces | USB 2.0, Hi-Speed USB - compatible with USB 2.0 specification, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T) |
| Security | IEE 802, HTTPs |
| Media Handling | Auto cutter, Borderless Print, Fine Art, Roll Paper, Thick Media Support |
| Other | |
| Warranty | 12 months On-site service |
| LCD and Memory Cards | |
| Panel | Type: Color, Diagonal: 6.8 cm |
| Scan | |
| Optional | (optional) |
| Maximum Precision | OR +/- 0.1 % of vector length (whichever is greater) |
| Supported models | Epson WorkForce DS-6500, Epson WorkForce DS-60000 |
| Scanner type | Contact image sensor (CIS) |
| Light Source | RGB LED |
| Media width | 38" (153mm to 965.2mm) |
| Scan width | 36" (153mm to 914.4mm) |
| Optical Resolution | 600 DPI (Horizontal x Vertical) |
| Scanning Speed | 13.3 inch/sec ( Monochrome, 200 dpi; 6 inch/sec ( Colour, 200 dpi; |
