1 in stock

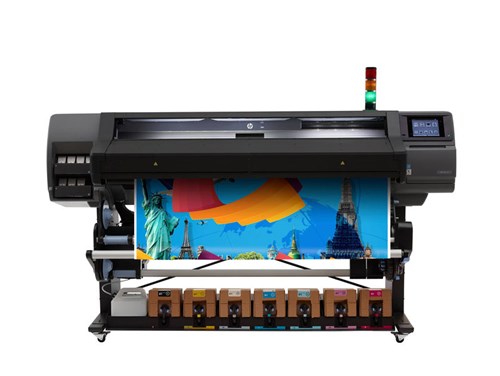

    Hewlett Packard Latex 570 Printer - 64in

    SKU: N2G70A

    Higher productivity for greater business growth

    The HP Latex 570 gives a step up in ease of use and production print volumes without compromising any of the features that have made HP Latex the game changing technology for print service providers. The HP Latex 570 delivers sustained unattended printing for high volume production environments. With high capacity 3 litre ink cartridges and a new spindle free media pivot table makes loading media is easy and fast taking just a minute.

    Prints are instantly dry and colour quality assured with HP colour management tools that include an in-built X-Rite i1 Pro Spectrophotometer enabling media profiles to be created. HP Latex Mobile puts you in control of print jobs regardless of you location with alerts and updates on print jobs sent direct to your mobile device.

    Run unattended longer

    Load rolls in one minute with the new spindle-less front loading pivot table capable of holding rolls up to 100 meters in length (55kg in weight) and high capacity motorised take up reel allows you to run unattended longer.

    Remote production visibility

    Monitor and maintain your production workflow thanks to the new HP Latex Mobile app and optional printer status beacon.

    Print Application Versatility

    Expand into textile signage and other porous materials and print full bleed thanks to the new embedded ink collector system and new media wiper system that allows high quality prints to be achieved on lower cost banner and vinyls.

    Third Generation Latex Ink

    Achieve high quality prints all at production speeds thanks to the new HP Latex optimiser ink which rapidly immobilizes pigments on the surface of a material and produces prints that are scratch and weather resistant comparable to that of hard solvent inks.

    Printing modes
    91 m²/hr (980 ft²/hr) - Max Speed (1-pass)
    31 m²/hr (334 ft²/hr) - Outdoor High Speed (4-pass 4-color)
    28 m²/hr (301 ft²/hr) - Outdoor Plus (4-pass)
    23 m²/hr (248 ft²/hr) - Indoor Quality (6-pass)
    14 m²/hr (151 ft²/hr) - Indoor High Quality (10-pass)
    6 m²/hr (69 ft²/hr) - Backlits, Textiles, and Canvas (16-pass)
    5 m²/hr (54 ft²/hr) - High Saturation Textiles (20-pass)
    Print resolution
    Up to 1200 x 1200 dpi
    Margins
    5 x 5 x 0 x 0 mm (0.2 x 0.2 x 0 x 0 in) (without edge holders)
    Ink types
    HP Latex Inks
    Ink cartridges
    Black, cyan, light cyan, light magenta, magenta, yellow,
    HP Latex Optimizer
    Cartridge size
    3 litre, 775 ml
    Printheads
    7 (2 cyan/black, 2 yellow/magenta, 1 light magenta/light cyan, 2 HP Latex Optimizer)
    Color consistency
    Average <= 1 dE2000, 95% of colors <= 2 dE2000
    Handling
    Roll feed; take-up reel; wiper roller; roll lifter; automatic cutter (for vinyl, paper-based media, backlit polyester film)
    Media types
    Banners, self-adhesive vinyls, films, fabrics, papers, wallcoverings, canvas, synthetics, mesh, textiles
    Roll size
    254 to 1625-mm (10 to 64-in) rolls (580 to 1625-mm
    (23 to 64-in) rolls with full support)
    Roll weight
    55 kg (121 lb)
    Roll diameter
    250 mm (9.8 in)
    Thickness
    Up to 0.5 mm (19.7 mil)
    Applications
    Banners, Displays, Double-sided banners, Exhibition, Event graphics, Exterior signage, Indoor posters, Interior decoration, Light boxes – film, Light boxes – paper, Murals, POP/POS, Posters, Textiles, Vehicle graphics
    Interfaces
    Gigabit Ethernet (1000Base-T)
    Dimensions (w x d x h)
    Printer 2560 x 792 x 1420 mm (101 x 31 x 56 in)
    Shipping Dimensions (w x d x h)
    2750 x 1037 x 1689 mm (108 x 41 x 67 in)
    Operating area
    2761 x 1792 mm (109 x 71 in)
    Weight
    Printer 250 kg (485 lb)
    Shipping Weight
    360 kg (728lb)

    PDF Spec Sheets

    LATEX570_SPECIFICATION.pdf

    This is what is included in the box for: Hewlett Packard Latex 570 Printer - 64in

    HP Latex 570 Printer, HP 871 3-liter Latex Kit, printheads, maintenance cartridge, ink collector, output platen protector, printer stand, roll lifter, take-up reel, loading accessory, user maintenance kit, edge holders, quick reference guide, setup poster, documentation software, power cords.

    Maintenance Cover per month - covering HP Latex 570 Designjet printer
    Maintenance Cover per month - covering HP Latex 570 Designjet printer
    £95.00

    more details

    HP Latex 570 Designjet SMK2 Preventive Maintenance - Service Maintenance Kit 2
    HP Latex 570 Designjet SMK2 Preventive Maintenance - Service Maintenance Kit 2
    £1,485.25

    more details

    HP Latex 570 Designjet SMK1 Preventive Maintenance - Service Maintenance Kit 1
    HP Latex 570 Designjet SMK1 Preventive Maintenance - Service Maintenance Kit 1
    £3,866.28

    more details

    HP Latex 570 Designjet SMK3 Preventive Maintenance - Service Maintenance Kit 3
    HP Latex 570 Designjet SMK3 Preventive Maintenance - Service Maintenance Kit 3
    £782.44

    more details

    HP Latex 570 Designjet SMK3 Preventive Maintenance - Service Maintenance Kit 3
    HP Latex 570 Designjet SMK3 Preventive Maintenance - Service Maintenance Kit 3
    £782.44

    more details

     It's time to book a service on your HP Latex 570 Designjet Printer
    It's time to book a service on your HP Latex 570 Designjet Printer
    £280.00

    more details

    Primer Arm Assembly
    Primer Arm Assembly
    £293.31

    more details

    FRONT ROD OILER - CQ869-67078
    FRONT ROD OILER - CQ869-67078
    £120.00

    more details

    Carriage Lubrication Felt Kit
    Carriage Lubrication Felt Kit
    £37.00

    more details

    DROP DETECTOR SERV
    DROP DETECTOR SERV
    £89.00

    more details

    Oil for Designjet Printers
    Oil for Designjet Printers
    £20.00

    more details

    HP Latex 570 Designjet Printer System Error Code or print quality issue, book your breakdown repair callout with 1st Call 4 Service
    HP Latex 570 Designjet Printer System Error Code or print quality issue, book your breakdown repair callout with 1st Call 4 Service
    £200.00

    more details

    £25,900.00

    Fixed Rate Payments With Tax Relief

    Lease Term 5 Years
    Weekly Payment £134.48
    First Payment £1,748.25
    57 Monthly Payments £582.75
    Total Cost £34,965.00
    Tax Relief @ 19% -£6,643.35
    Nett Cost Of Finance £28,321.65

    Call Us To Get Started - 0121 747 2499
